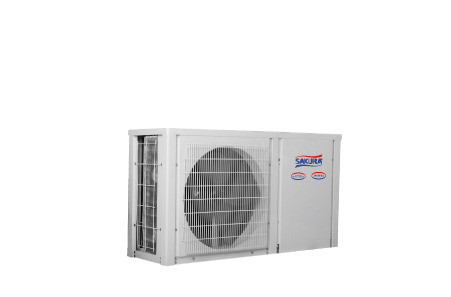

New Swimming Pool Heat Pump
(SXSP Series) |
|
 |
|
|
|
One of the most spotlighted subjects in current European
A/C-related market is Thermal Management to go along with much severer
regulations to reduce CO2 consumption to shift to Heat Pump system from
traditional manner of using gas or oil boilers.
In Europe, such Heat Pump system has been popularly used when people need
to cool down water temperature in hot season, and on the contrary, to warm
it up in cooler season at home.
Major Feature:
- Most economic wag of heating/cooling swimming pool
- Environment friendly Refrigerant: R-410A
- Side Discharge
- Japanese brand Compressor (Mitsubishi or Toshiba) comes with
the unit
- 3 models available as SXSP series: Heating Capacity of 6.5, 8.5
and 12.0Kw with respective Cooling capacity of 4.5, 6.0 and
9.0Kw: mostly for home pool use
- To cover mostly home-use purpose, where Salty Water is
commonly used, Titanium Tube is adopted as Tube-in-Tube Heat
Exchanger for higher durability of the system
- Water Temperature control range is 15 up to 40 deg. C
- Working Ambient Temperature range is as wide as-10 up to
43 deg. C
Higher Capacity of Commercial use type Heat Pump is now under developing
stage to be introduced to the market no later than end of 2008. |
 |
 |
|
|
|
|
|
|
 |
Specifications (516 KB) |
|
|
|
|
|
Technical Manual (1.33 MB) |
|
|
|
|
|
Installation for Manual (216 KB) |
|
|
|
|
|
|
|
|
|
|
|
|
