| SAKURA Renewable Energy System |
|
Due to global warm waring, CO2 generation as well as crisis of power, Sakura
Corporation are now ready to promote renewable energy system (Geothermal
Heat pump) as a alternative energy solution which already well proved from
long time ago.
The biggest benefit of GHPs is that they use 25%- 50% less electricity
than conventional heating or cooling systems. This translates into a GHP
using one unit of electricity to move three units of heat from the earth.
According to the EPA, geothermal heat pumps can reduce energy consumption-and
corresponding emissions-up to 44% compared to air-source heat pumps and
up to 72% compared to electric resistance heating with standard air-conditioning
equipment. GHPs also improve humidity control by maintaining about 50%
relative indoor humidity, making GHPs very effective in humid areas.

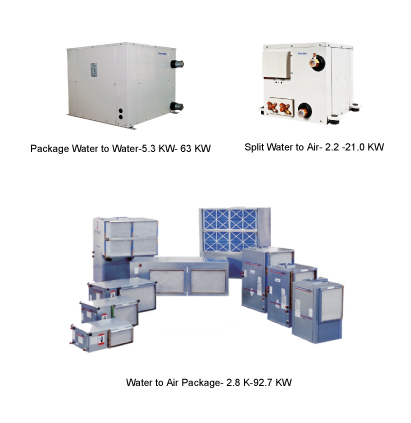

Sakura Corporation has variety of choice for unit selection to match with
project requirements such as-
Water to air monoblock can be use for Large Cooling Requirement-Shopping
Mall, Open Lobby with a capacity range of 2.8 KW-92.7 KW
Split Water to air (single/mono) split is applicable where Noise is very
important as well as Small Cooling Requirement-Hotel Room, Office with
a capacity Capacity 2.2 KW-21.0 KW
Package water to water Applicable for floor heating with radiator as well
as room heating/cooling with FCU. Heat Recovery Function can provide domestic
hot water at the same time, Capacity range 5.3 KW- 63 KW
Geothermal Heat pump are very suitable for Residential apartment, Hotel,
office Buildings, Hospital, School, Shopping mall, Factory. Sakura Corporation
are ready to design of your project including ground loop design, unit
selection, unit supply, installation guidence, guidence for ground heat
exchanger.
Ground loops can be installed in a vertical well or a horizontal loop.
Vertical wells are usually more expensive and used where space is limited.
The length of loop pipe required will vary with soil type, loop configuration,
and system capacity. Loop length can range from 250 to 1,000 feet per ton
of capacity. But a proper design can make the system very efficient, a
small mistake can cause of excess installation cost or less efficiency.
To measure the soil conductivity, soil condition, using grout is very important
for an efficient system. Sakura Corporation has trained person to design
a system through latest software
|
|
|
 |
|
|
|
|
|
|
|
