| @@Important Information (Mar 11, 2008) |
|
Dear our customers,
We have updated appearance of Cassette Indoor Unit taking market feedback
into much improved outlook of the unit as detailed below.
1. Appearance
Thicker body and quite elegant appearance.

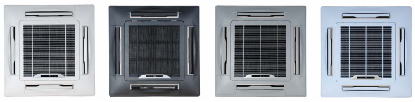

2. Colorful
Four (4) colors for choice to suit room interior design.
@@@White @@@@@@Black @@@@@@Grey @@@@@@Blue
3. Louver swing angle
1) One additional Swing Motor enables two louvers controlled by one
@ motor.
2) Inside parts are reorganized to minimize the angle loss.
3) Swing angle of 1st Louver is 40-42 degrees and the 2nd Louver is
@ 37-38 degrees.
4. Wider variety of blow function
1) To change fan blowing direction gAdding Ribh is placed on the panel.
2) 4 speed controlled. Super High for larger areas especially of its
@ ceiling height 3m or over.
3) Anti-condensate on Louver.
5. Air side-outlet
Knock-out hole at four sides of the unit to supply air to nearby small
rooms. Keep required space, thus, to connect duct pipes for the purpose
if necessary.
6. Increased fan performance
1) Much powerful motor and screw fan increases air velocity and lowers
@ noise level.
2) Easier to disassemble fan by redesigned holding latch.
3) More uniformed volume of airflow at lower noise level by innovative
@ design Air Duct.
7. Rational alignment
Re-designed by most advanced structure and fabrication technology to have
more rationally aligned position of water pan for insulation.
8. Enhanced Rib
Highly rigid and enhanced Rib is built in to the panel to prevent distortion.
9. Reduced Height
18 to 30K: 230mm, 36 to 48K: 300mm, much space saving for installation.
10. Higher Performance
- Higher heat-exchange efficiency and lower noise by narrower Fin
@Spacing of 1.45mm.
- Excellent capacity is guaranteed by optimal evaporator and sufficient
@airflow volume.
11. Easier malfunction checking
By an added digital display, LED Error Code, malfunction checking is now
much easier.
12. More stable and damage-preventing Control Box
- Wiring is now much easier and simpler by an optimal design, smaller
@and space saving Control Box.
- More stable and damage-preventing by using galvanized steel of
@higher fire resistance.
13. Compatible with Universal Outdoor units
When their capacity meet, the Cassette Indoor unit is compatible with other
Sakura outdoor units of Ceiling & Floor, Duct, High Static Duct.
Features
- Panel is available in 4 types in option, 840x840mm
- More elegant, be harmonious with room decoration
- Stable performance, higher efficiency
- Creative and ergonomic design
- Simple design, easier installation
- Larger airflow and lower noise
- Compatible with universal outdoor units |
|
For R410A Fixed Speed Unitary Range:
| Capacity |
24kBtu |
30kBtu |
36kBtu |
48kBtu |
| Cooling only |
|
|
|
|
| Heat pump |
|
|
|
|
| Single phase |
|
|
|
|
| Three phase |
|
|
|
|
|
|
For R22 Fixed Speed Unitary Range:
| Capacity |
18kBtu |
24kBtu |
36kBtu |
48kBtu |
| Cooling only |
|
|
|
|
| Heat pump |
|
|
|
|
| Single phase |
|
|
|
|
| Three phase |
|
|
|
|
|
The new Cassette Indoor Unit is much improved to have lower noise level
and better performance compared to the current type. Inconveniences being
pointed out on the current type for its unstable lead time shall be completely
cut out by the newly designed system. The current type, thus, just phase
out as of June 30, 2008 at the factory to be taken over by the new Cassette
Indoor units.
Note:
Schedule of the current type:
- Before June 30, 2008, the current type is still available to fulfill
a need
@by your order.
- On and after June 30, 2008, the current type is no longer available.
- Spare parts supply will remain for 1 year period, up to June 30, 2009.
|
|
|
|
|
