Sakura Big Tent Air Conditioner
|
|
|
|
January 22, 2016

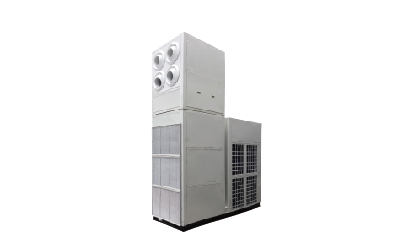

Sakura Corporation newly launched a large capacity air conditioner, with packaged design
(no piping, no gas-recharging required) available for an area of around
250-300 m² applicable to Big Tent, Warehouse,
First-Aid Camp, Temporary School, Laundry Shop, Exhibition Hall,
Event Hall and so on.
By its 270 degree angle-adjustable air supply, the cold air blow reaches 3 meter high, and 25 meter wide.
Using 3x 10 hp big scroll compressor, the unit provides strong cooling power by its blow-out temperature of 14 deg.c. by an air volume of 12,000 m3/hour, with statistic pressure of 350 Pa through washable anti-dust filters.
The unit is also adjustable by the attached LCD control box on demand.
The unit is available in R-22 (T-1) for capacity 75kW and 100 kW, and R-22 (T-3) for capacity 75 kW, also in R-410a (T-1) for capacity 75 kW.
For installation, there are two ways, one with free-blow type with plenum chamber and the other by using soft duct without plenum chamber.
|
|
 |
|
Installation
|
 |
| Installation without plenum chamber (soft duct installation) |
 |
| Installation without plenum chamber |
|
|
|
|
|
|
